Product Features
STANDARD FEATURES
• Capacity: 150 lbf, 667 N, 68 Kgf
• User chageable display units (pounds force, newtons or Kgf)
• Resolution: 0.1 lb, 0.1 N, 0.1 Kg
• Accuracy: ± 0.5 % of full scale
• Digital Display with Peak Hold
• Backlit LCD Display with 0.56” High Digits
• Self-Tightening Wire Grip (P/N 15-3202C)
• 15 Position Slotted Terminal Contact Grip (P/N 15-3087)
• Manual Lever Arm Pull Mechanism
• Input power: 100-240 VAC 50/60 Hz
OPTIONAL ACCESSORY GRIPS
• Ring Terminal Grip (P/N 15-0066)
• Right Angle Terminal Grip (P/N 15-3042)
• Locking Ring Terminal Lower Group (P/N 15-3242)
PHYSICAL
• Weight 15.2 Lbs.
• (Shipping Weight 21 Lbs.)
• Stand Dimensions: H. 5”, W. 8.5”, D. 16”
CALIBRATION
• Supplied with certificate of calibration traceable to NIST
• Factory calibration available
OPTIONAL FEATURES
• Custom grips available
* Size 10 MIL Spec wire pull test is typically 150 pounds force. Sample may not break at 150 pounds.
** May require special grips due to wire diameter.
-

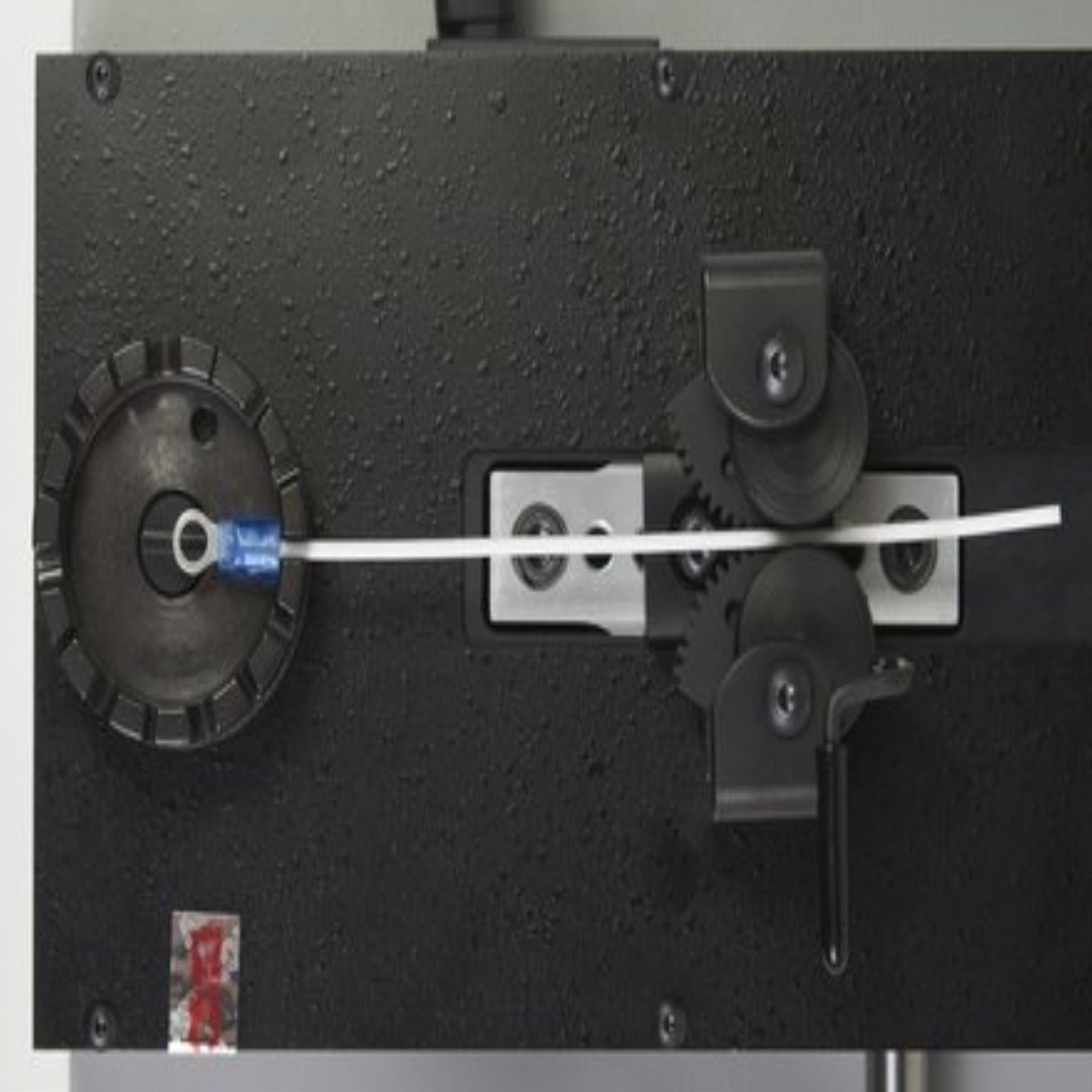

The PT-150H Manual Wire Crimp Pull Tester is oriented horizontally and ideal for testing crimp strength up to size 10 for Mil-Spec applications*, and size 4 AWG for commercial and automotive applications**.
The PT-150H may be used in conjunction with SPC Programs or other Quality Control disciplines in both OEM and maintenance applications. The electronic digital readout display is a fast and reliable source of test data.PT-150H
The operation of the equipment is simple yet versatile, and DMC will customize the gripping jaws or other components to make test sample installation and removal an easy task.
* Size 10 MIL Spec wire pull test is typically 150 pounds force. Sample may not break at 150 pounds.
** May require special grips due to wire diameter.
STANDARD FEATURES:
Capacity: 150 lb, 667 N, 68 Kg
Display Units Factory Set for Pounds, Newtons or Kilograms
Resolution: 0.1 lb
Accuracy: ± 0.5 % of full scale
Digital Display with Peak Hold
Backlit LCD Display with 0.56” High Digits
Self-Tightening Wire Grip (P/N 15-3202)
15 Position Slotted Terminal Contact Grip (P/N 15-3087)
Lever Arm Pull Mechanism
OPTIONAL ACCESSORY GRIPS:
Ring Terminal Grip (P/N 15-0066)
Additional Self-Tightening Grip (P/N 15-3202)
Right Angle Terminal Grip (P/N 15-3042)
PHYSICAL:
Weight 15.2 Lbs. (Shipping Weight 21 Lbs.)
Stand Dimensions: H. 5”, W. 8.5”, D. 16”
CALIBRATION:
New units supplied with certificate of calibration traceable to NIST
Factory calibration available
OPTIONAL FEATURES:
230 VAC 50/60 Hz Power (Consult Factory)
